Pre-order for used Hyundai crawler excavator R220LC 2012 year.

Overview

Powered by a Cummins D6GA Stage 4/Tier 4 Final diesel engine, the HX220LC complies with the international Stage 4 emissions control standard.  New features like visibility and handle improvement, automatic engine shutdown, auto safety lock, enhanced cabin visibility, and eco gauge lifting mode can help improve productivity on hard to handle jobs. All Hyundai excavators are known for fast cycle speeds, impressive hydraulic power and precision control. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours.

PRICE FOB SKOREA: 37,000USD

MODEL NUMBER: 5003
EXCAVATOR MODEL: HYUNDAI R220
SPECIFICATION: ROBEX R220LC
MANUFACURER YEAR: 2012

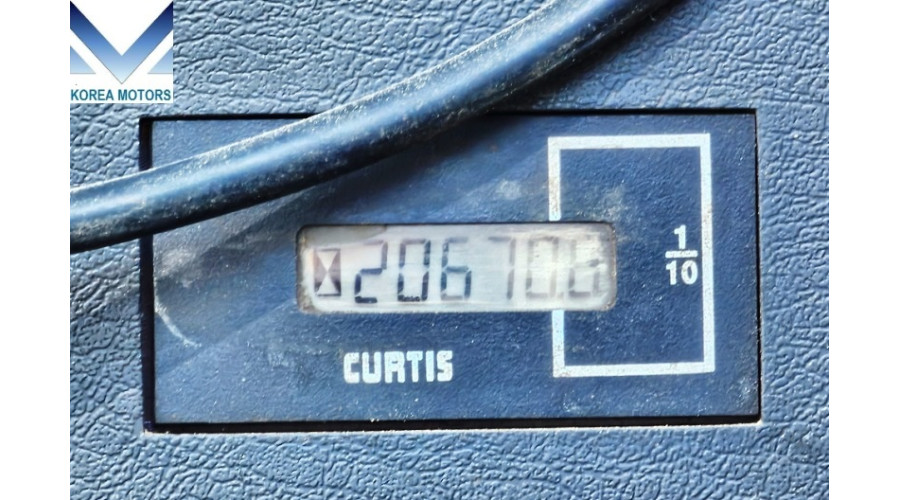

CURTIS: 20670.6 Hours
ENGINE
Maker / Model Cummins D6GA
Type Tier 4F/ Stage IV Emission Certified, 6 cylinder diesel engine with No Manual Regeneration.
Gross power (SAE J1995) 173 HP (129 kW) at 2,200 rpm
Net power (SAE J1349) 170 HP (127 kW) at 2,200 rpm
Max. power 195 HP (145kW) at 2,000 rpm
Peak torque 650 lb·ft (881 N·m) at 1,300 rpm
Displacement 6,700 cc (408 cu in)
HYDRAULIC SYSTEM
MAIN PUMP
Type Variable Displacement Tandem Axis Piston Pumps
Max. flow 2 x 58.4 gpm (2 × 221 ℓ /min)
Sub-pump for pilot circuit Gear Pump
AUXILIARY PRESSURE
2 Way Flow (I/min) 26~116 gpm / (100~440 lpm)
Pressure (bar) 1,450~5,076 psi / (100~350 bar)
Rotating Flow (I/min) 14 gpm / (52.7 lpm)
Pressure (bar) 2,321 psi / (160 bar)
HYDRAULIC MOTORS
Travel Two speed axial pistons motor with brake valve and parking brake
Swing Axial piston motor with automatic brake
RELIEF VALVE SETTING
Implement circuits 350 kgf/cm2 (4,980 psi)
Travel 350 kgf/cm2 (4,980 psi)
Power boost (Boom, Arm, Bucket) 380 kgf/cm2 (5,400 psi)
Swing circuit 265 kgf/cm2 (3,770 psi)
Pilot circuit 40 kgf/cm2 (570psi)
Service valve Installed
HYDRAULIC CYLINDERS
No. of Cylinder Bore X Stroke
Boom: Ø120 × 1,290 mm
Arm: Ø140 × 1,510 mm
Bucket: Ø120 × 1,055 mm
DRIVES & BRAKES
Drive method Fully Hydrostatic Type
Drive motor Axial Piston Motor, In-Shoe Design
Reduction system Planetary Reduction Gear
Max. Drawbar pull 20,800 kgf (45,860 lbf)
Max. Travel speed (High / Low) 5.4 km/hr (3.4 mph) / 3.5 km/hr (2.2 mph) Gradeability 35°˚ (70%)
Parking brake Multi Wet Disc
CONTROL
Pilot pressure operated joysticks and pedals with detachable lever provide almost effortless and fatigueless operation.
Pilot control Two Joysticks with One Safety Lever (LH): Swing and Arm, Boom and Bucket
Traveling And Steering Two Levers With Pedals
Engine throttle Electric, Dial Type

ATTENTION: AFTER PLACE PRE-ORDER YOU MUST PAY ONLY DEPOSIT AMOUNT 500USD FOR FURTHER REGISTRATION OF THE PURCHASE YOU WILL BE INVOICED FOR FULL PAYMENT AND EXPORT OF THE CAR TO YOUR COUNTRY.

SHIPPING: On site have auto calculator for price and ship rate depend final country destination. Delivery time 15-35 days only by sea ferry to any country local port terminal.
